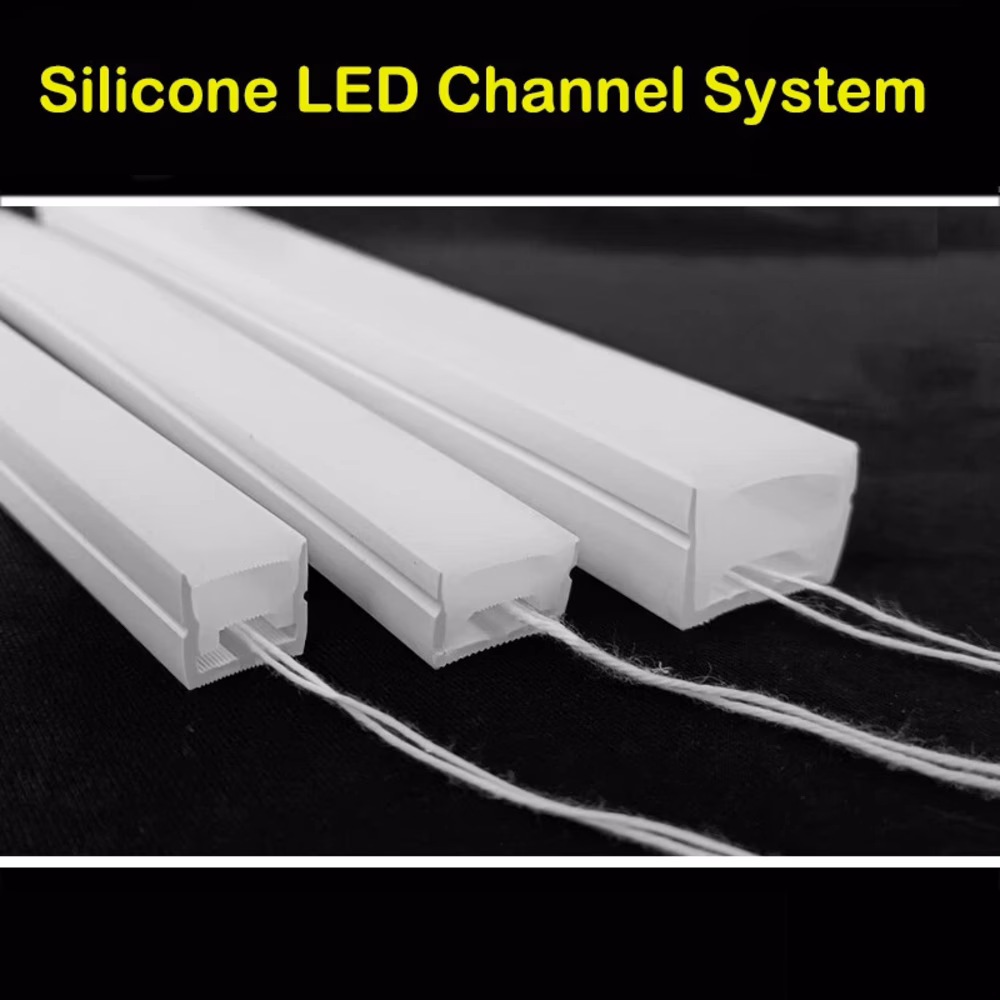

Silicone LED Channel System Flex Cuttable Mount Holder Tube FRONT
Key Specifications

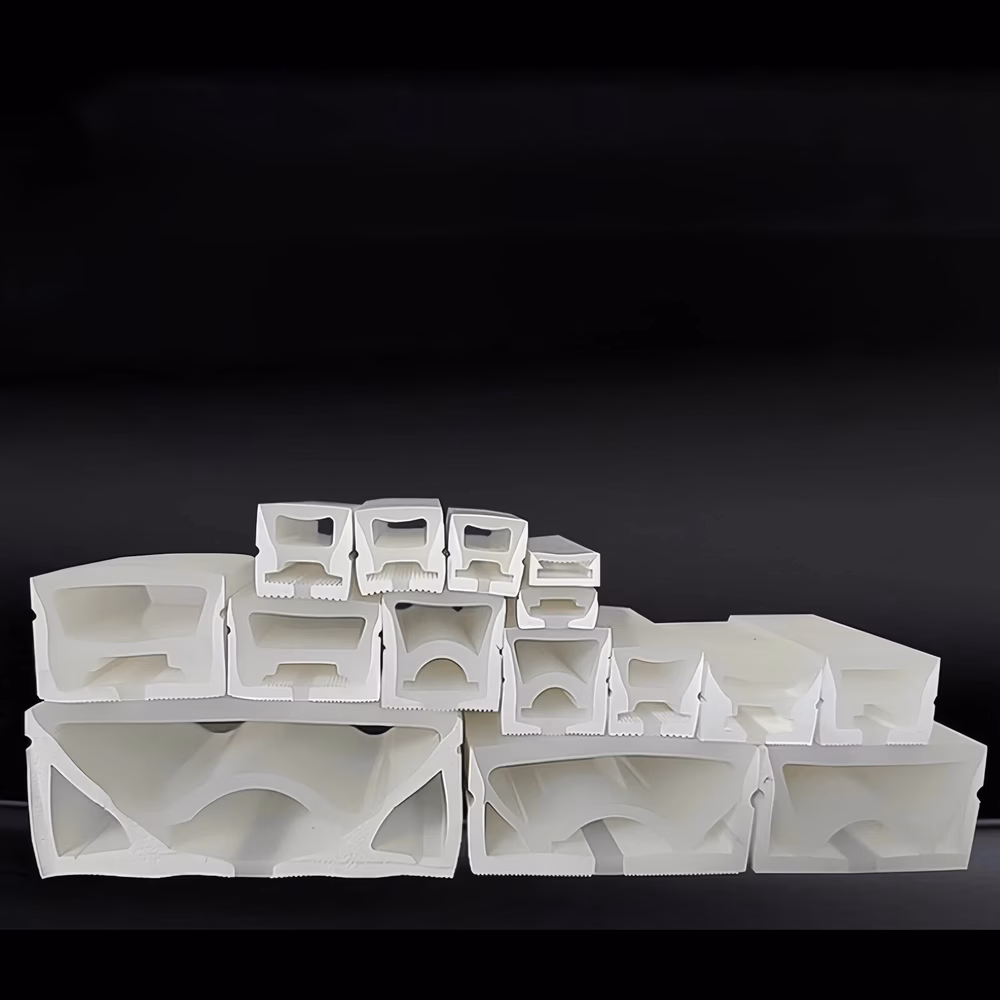

size/mm: 6*6/8*8/10*10/11*11/12*12/14*14/15*15/16*16/15*10/20*10/20*14/20*20/30*20/25*17 | emitting: FRONT | INPUT VOLTAGE: / | IP RATING: IP65/IP67/IP68
Product Details
Color Options
Product Description
Product Features :
What is Silicone LED Strip Light Diffuser?

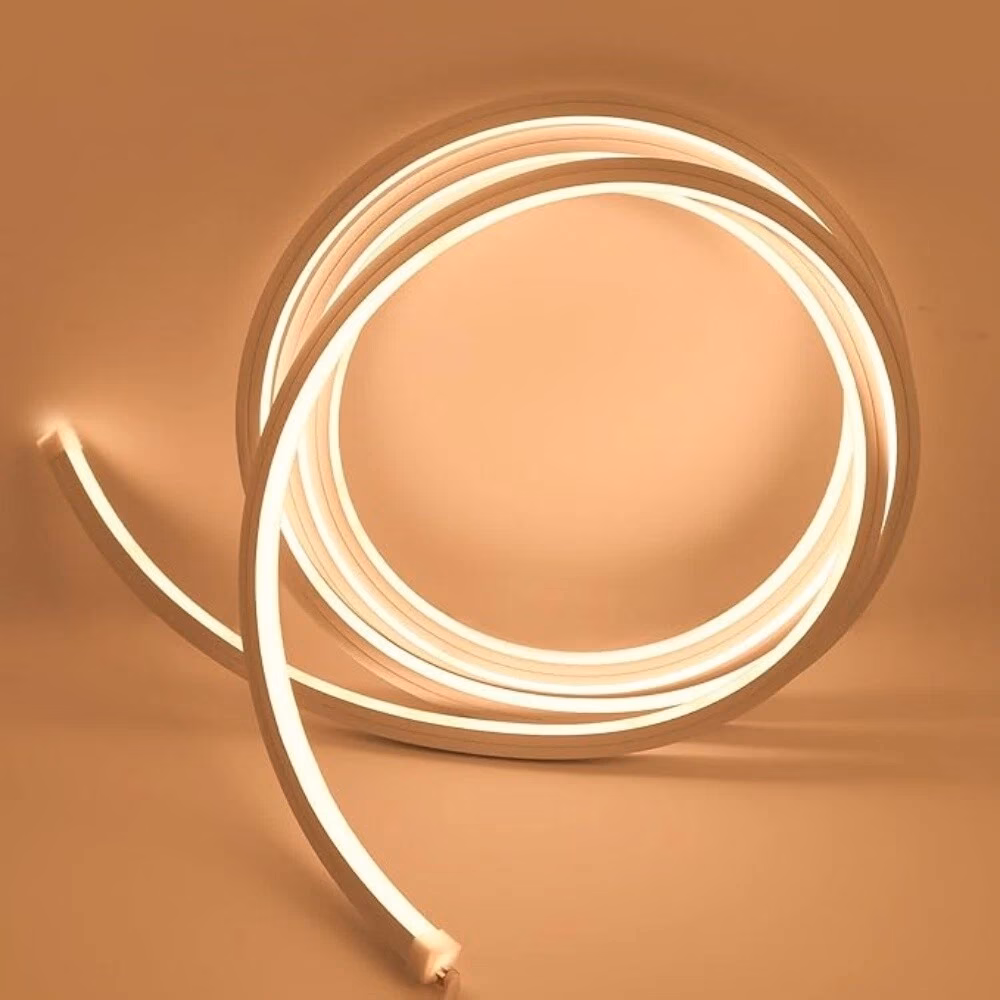

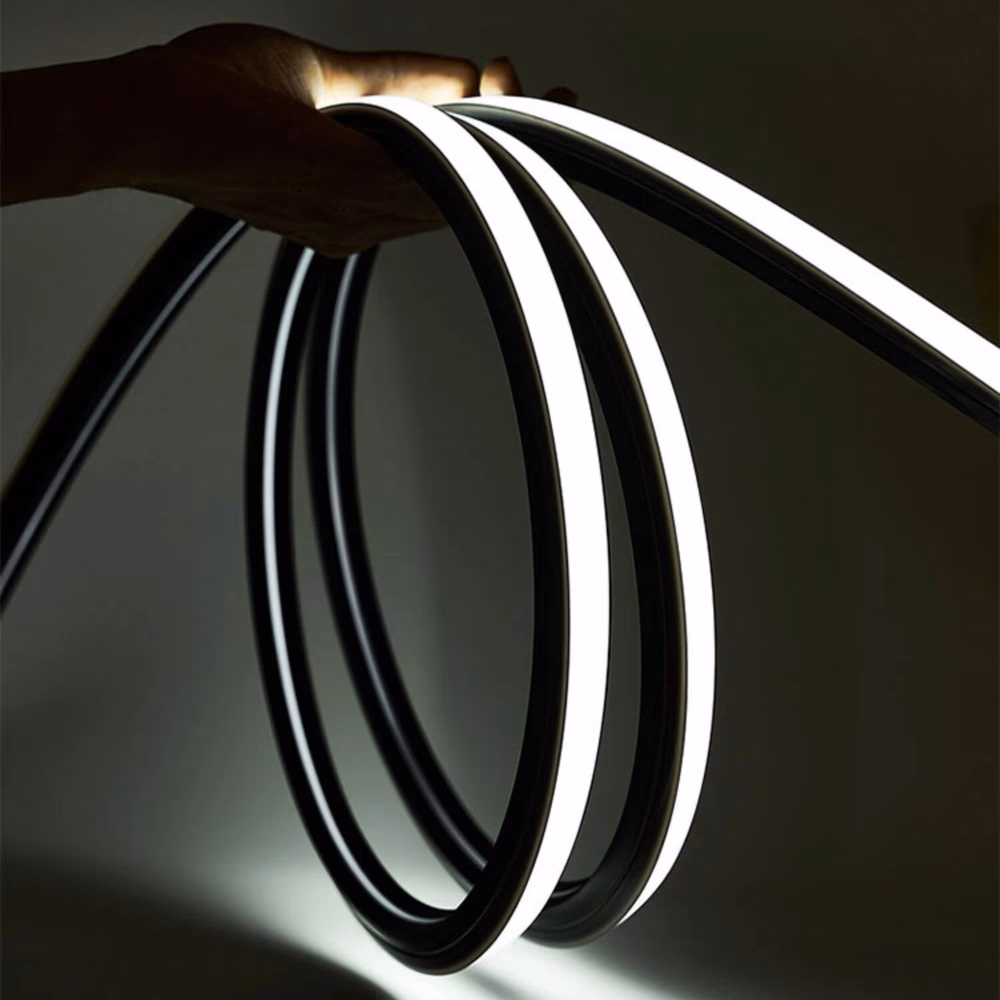

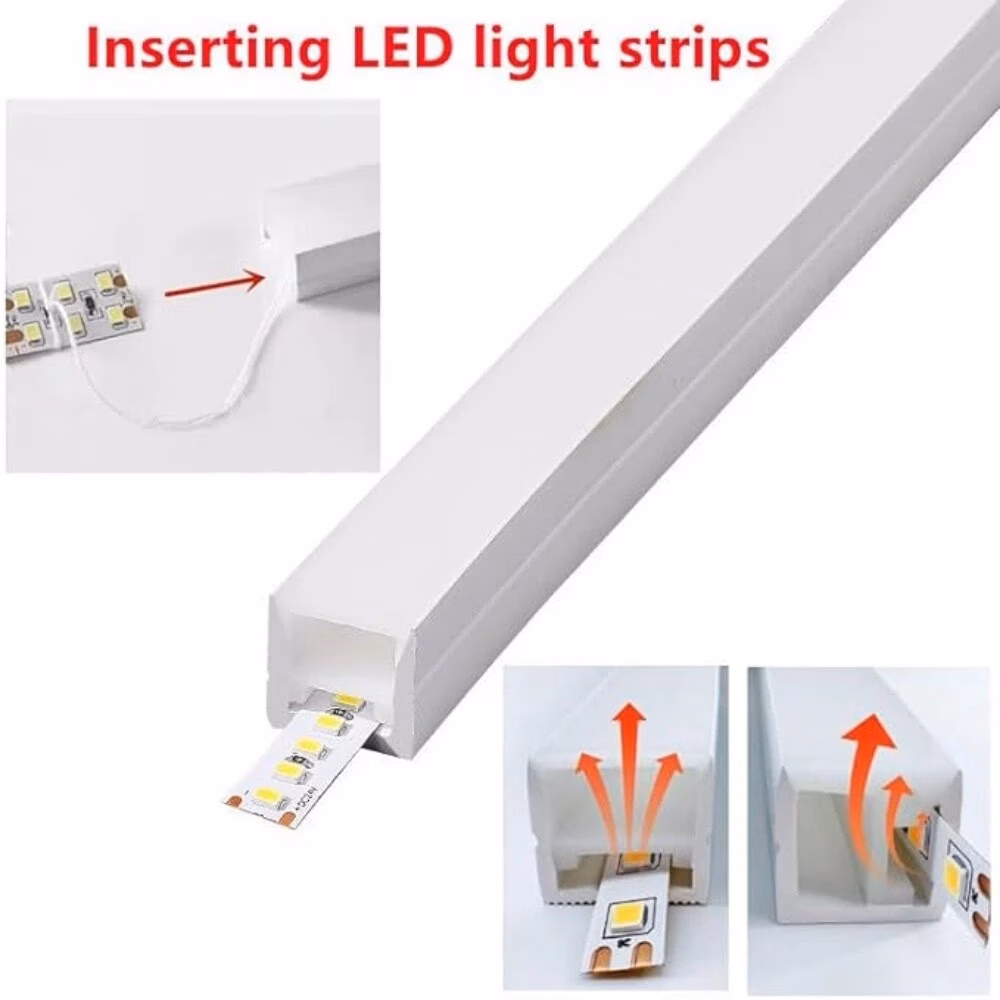

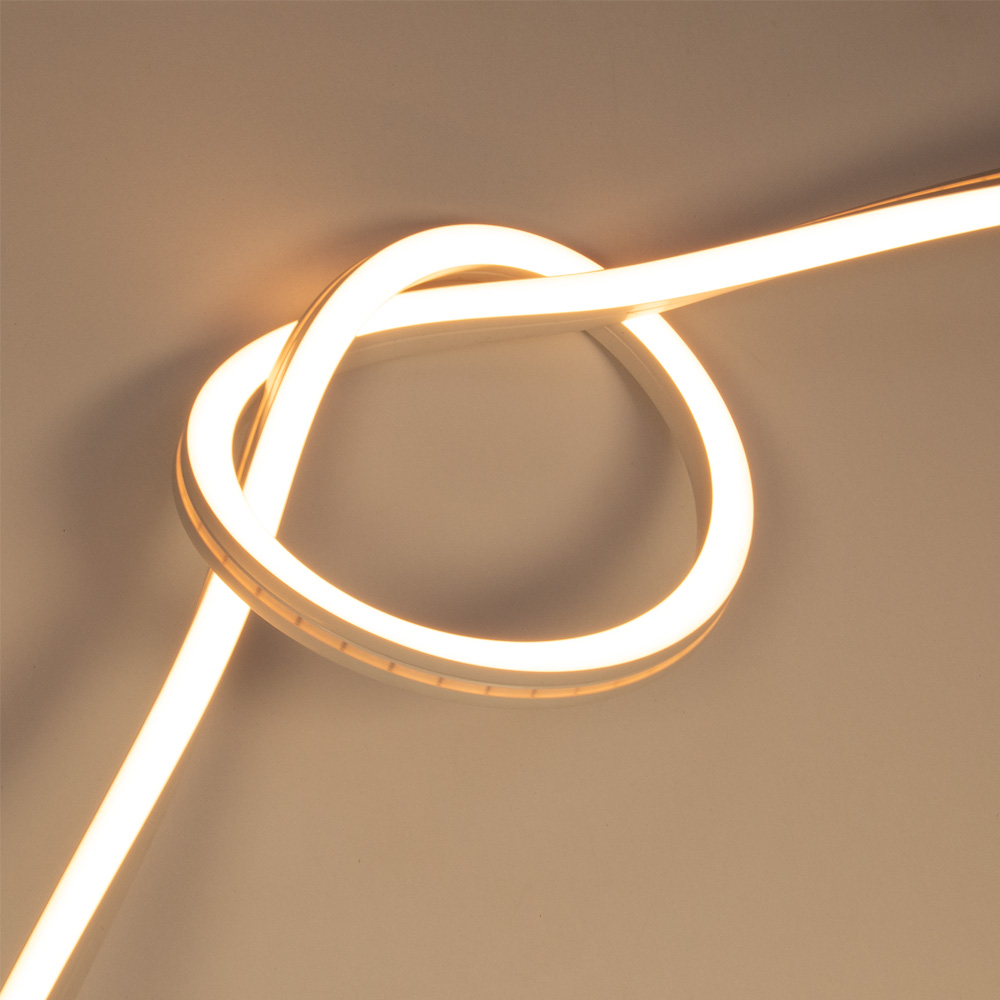

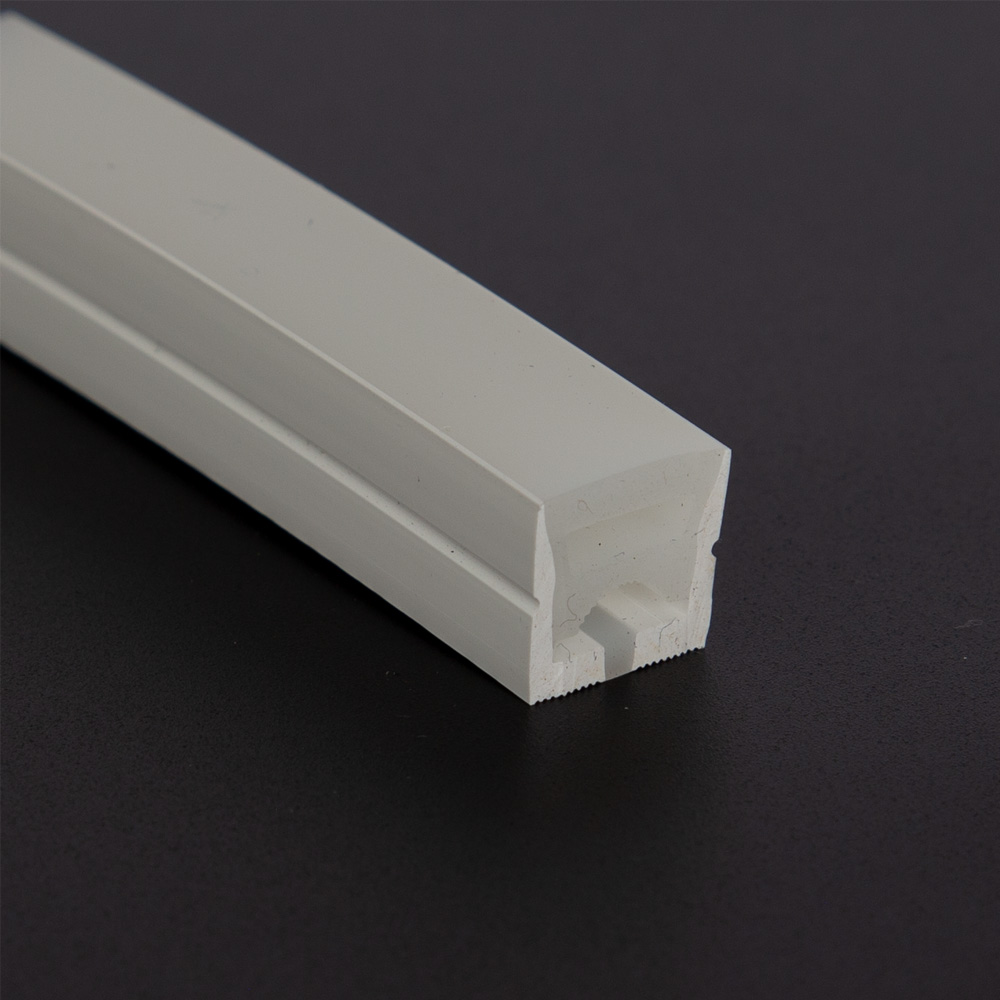

A silicone led diffuser (neon led diffuser) is a flexible, durable accessory made from high-grade silicone, designed to encase led light strips for enhanced light diffusion and protection. Its waterproof properties make it suitable for both indoor and outdoor applications. Typically, these led neon replacement diffuser tubes include end caps and mounting clips (or channels) to ensure secure and hassle-free installation.
Material selection directly impacts your neon lighting’s lifespan and safety. True luxury lighting begins with the right material. Unlike budget PVC alternatives, our food-grade silicone tubes and covers deliver uncompromising performance across all critical metrics:

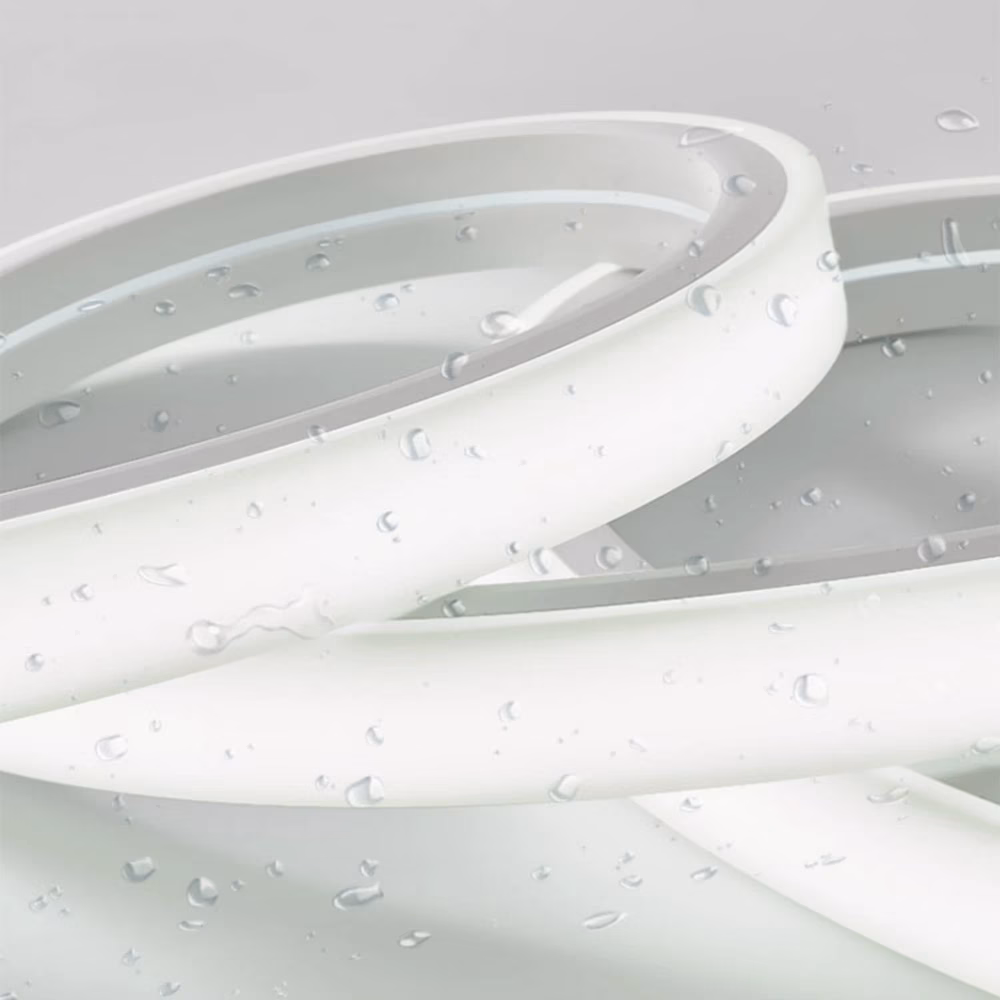

Silicone Diffuser:✅ Soft & heat-resistant (-50°C to 200°C) ✅ UV/aging resistant (long-time outdoors without yellowing) ✅ Food-grade safety (no plasticizer emissions) ✅ Outdoor architectural lighting, automotive mods, premium / permanent commercial spaces, health-sensitive areas |
PVC Diffuser:⚠️ Rigid, brittle in cold temperatures ⚠️ Yellows noticeably at outdoors ⚠️ Contains plasticizers (potential VOC emissions) ⚠️ Short-term LED decor, low-budget temporary projects |

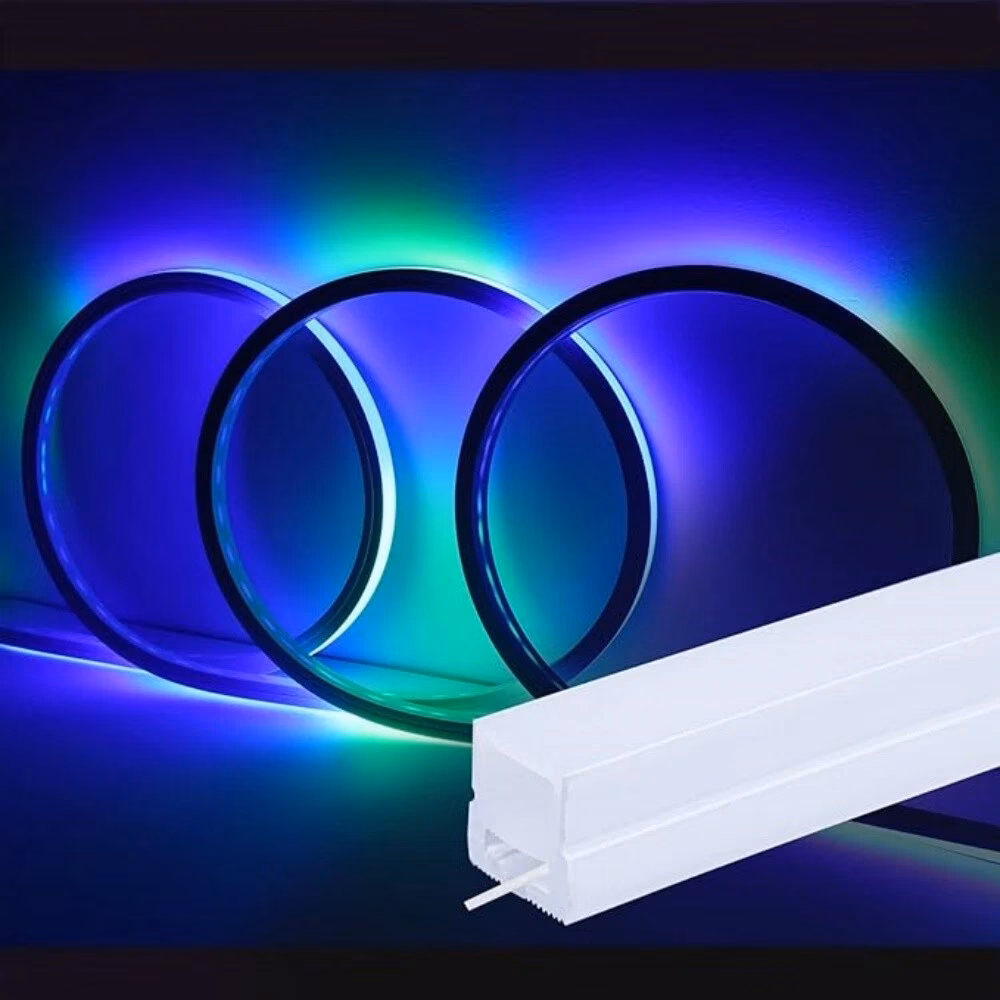

Two primary types of neon lighting solutions available: LED Neon Tubes (wrap light strip inside the tube) and LED Neon Covers (top-only coverage over the led strip). Each type serves unique purposes and comes with its own set of advantages.
Type |
Silicone LED Strip Diffuser Tubing |
||
|---|---|---|---|

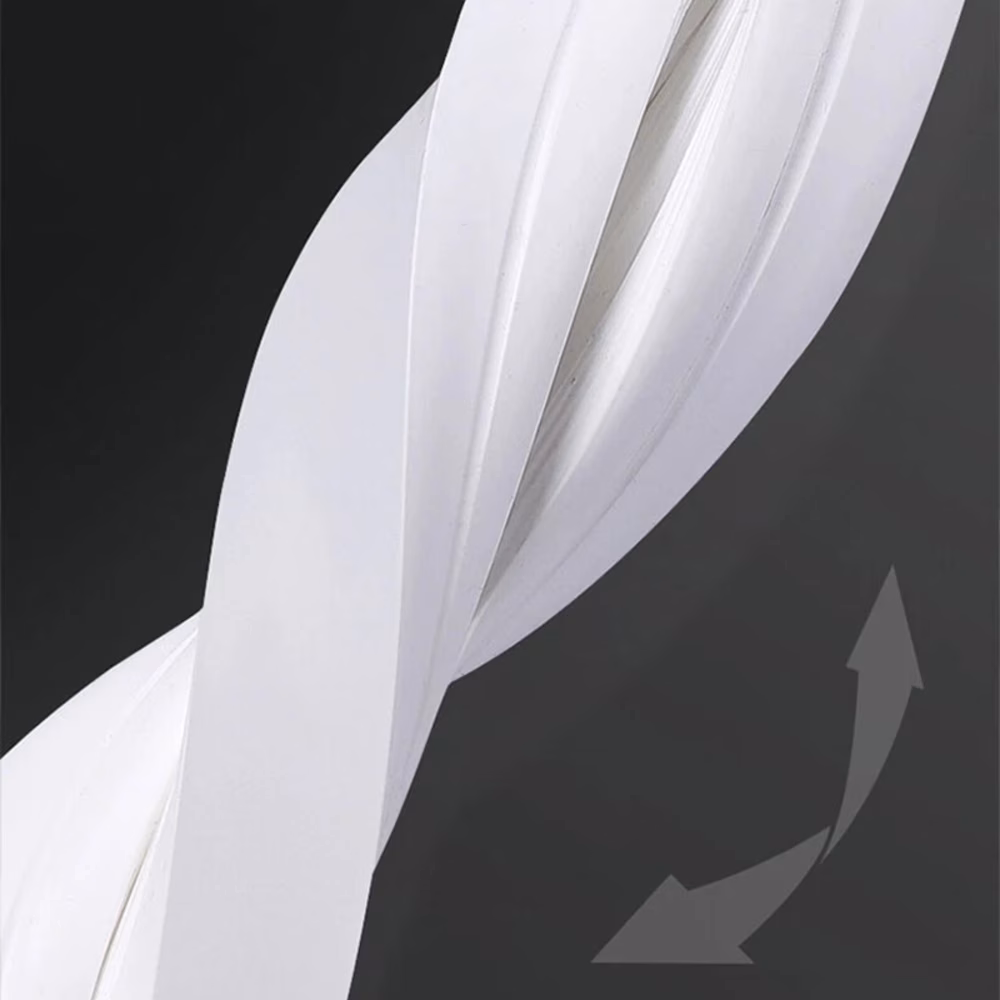

| Bend Direction | Top bending (vertical bending) | Side bending (horizontal bending) | 3D bending (horizontal & vertical bending |
| Shape | Square, rectangle, circle, semicircle, dome | Square, rectangle, dome | Square |
| Size | W6-100mm, H6-30mm | W3-30mm, H8-32mm | 1010, 1313, 1615, 1616, 1818 |
| Color | White, black, custom | White, black, custom | White, custom |
| Available PCB | ~30mm | ~15mm | ~10mm |
| Application | Wall & ceiling lighting, furniture lighting | Sign and text lighting, contour tracing | Complex shape lighting, art installations |
Type |
Silicone LED Strip Diffuser Cover |
||
| Bend Direction | Free | ||
| Shape | Dome top, flat top, triple-sided illumination | ||
| Size | W4-82mm, H8-24mm | ||
| Color | Translucent, gray, black, white flange trim, black flange trim, red, blue, green, ice blue, yellow, orange, pink, custom | ||
| Available PCB | ~30mm | ||
| Application | Recessed lighting | ||
Discover the key benefits that make diffusion strips indispensable for professional lighting applications:
| Function | Technical Effect | Application Advantage |
| Light Diffusion | Breaks up direct LED beams, scattering light multidirectionally | Reduces harsh shadows, glare & hot spots for uniform output |
| Light Softening | Spreads light over larger surface area via silicone material | Eliminates harsh reflections; creates smooth, eye-friendly illumination |
| Visual Comfort | Lowers contrast between bright / dark zones | Minimizes eye strain in residential / commercial spaces |

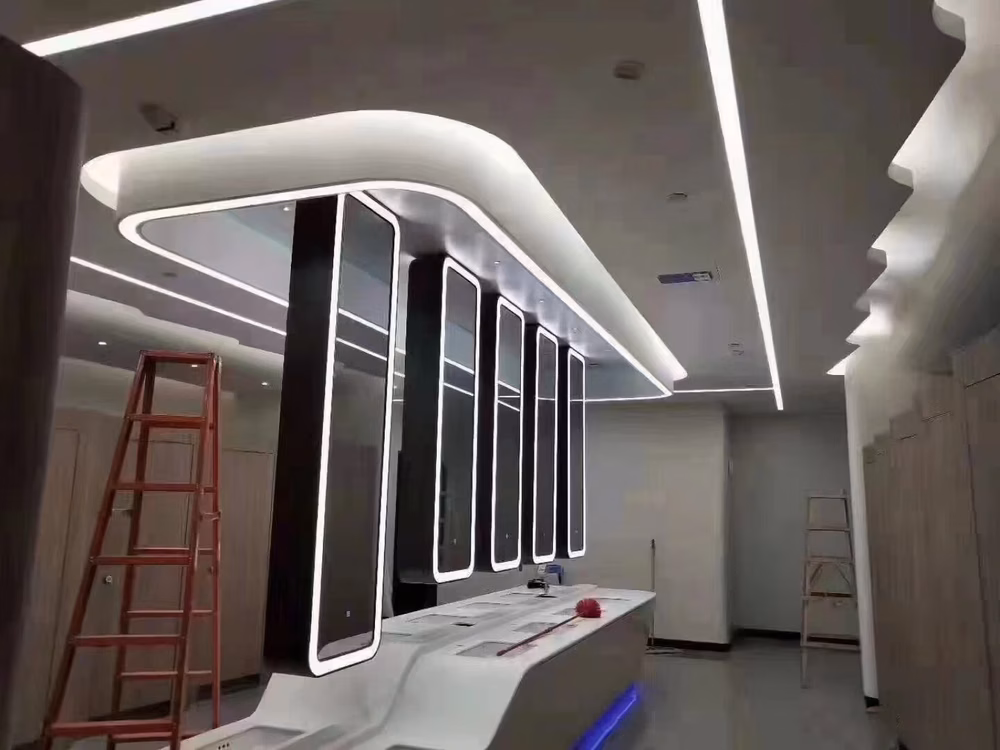

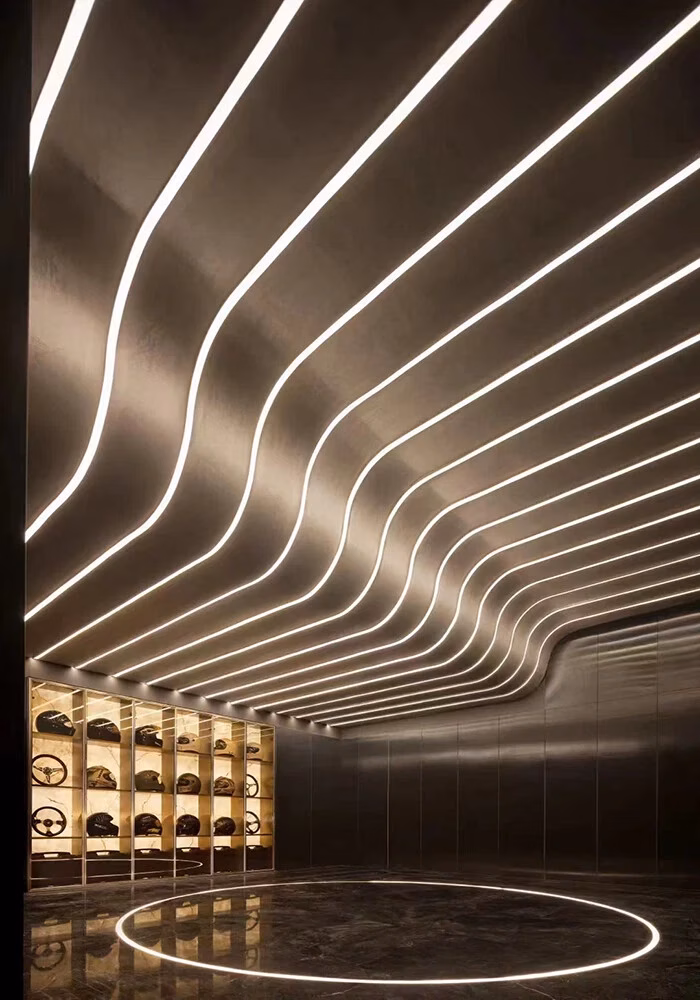

| Uniform Lighting | Balances light distribution through silicon diffusion layers | Seamless illumination for architectural features (e.g., coves, signage) |
| Aesthetic Enhancement | White / black housing hides LED beads and circuits | Clean, minimalist appearance for exposed installations |
| Environmental Protection | IP65+ / UV-resistant silicone shields bare strips (dust / water / sunlight protection) | Extends LED lifespan in outdoor / industrial environments |
