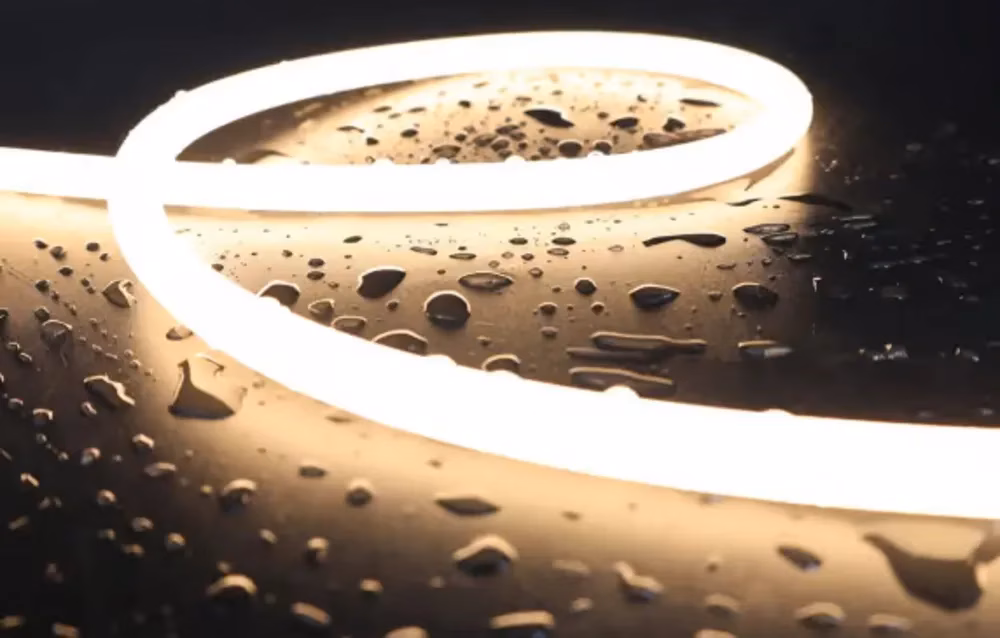

NEON-360° SINGLE COLOR RGB RGBIC
Key Specifications
Size/Width: D16/D25/D18 | Cut Points: 1cm | cover: weave/milky | Voltage: 12V
Product Details
Color Options
Product Description
product features:
1. Adapt 2835 SMD LEDs, low power consumption, 120 LEDs per meter, super bright.
2.Weather resistance, anti-UV, With good flexibility, it is easy to shape,Waterproof rating IP65
3. Multiple white light color temperatures and led light colors optional
4. DC12V/24V operation, voltage drop of more than 5meters requires a separate power supply or use an amplifier.
5. 5meter(16.4')/10 meter(32.8')/and 50meter(164') Per Reel By Sale.
Application:
Suitable for scenarios such as hotels, shopping malls, and residential homes, serving purposes like general (main) lighting, indirect lighting, outline contouring for aesthetic effects, and decorative illumination.
MODELS AND PARAMETERS:
| LED Chip: | 2835 SMD LED |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Colors: | 2700K-3000K warm white, 6000K-6500K daylight white, 7000K-9000K cool white, red, green, blue, ice blue, pink, purple, golden |
| Lumen Per LED: | 12lm/LED, 439lm/ft |
| LED Quantity: | 252LEDs per meter |
| Lifespan: | 50,000+hours |
| Size: | Φ22cm/Φ28cm |
| Input Voltage(V): | DC12 V |
| Working Power: | 12W/m |
| packing: | 10m/roll |
| Waterproof Rating: | Waterproof IP67 |
| CRI(Ra>): | 80 |
| Beam Pattern: | 120 degree |
Note: DC12V 5-meter no voltage drop, but if you need a 20-meter DC12V neon light, in order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each 10-meter.
Installation diagram:
1. cut and install led neon sign light:
There are three installation methods for the led neon strip lights. One is to install with mounting clips (purchase separately). The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
