Comparison and Analysis Report of Low-Voltage RGB LED Strip...

This report focuses on mainstream ICs for low-voltage RGB LED strips, classifies and analyzes the parameters, advantages, and disadvantages of external, internal, and DMX512 series ICs. It compares the differences between break-point resume and non-break-point resume, as well as different voltage selection options, provides precise scenario-based selection schemes, and supplements key points for common fault diagnosis. It serves as an authoritative and practical reference for LED lighting engineers, purchasers, and technical personnel, with data sourced from manufacturer specifications and industry standards.

I. IC Market Classification (Mainstream / General)

(I) Mainstream ICs (Industry Preferred, Stable and Versatile, Wide Adaptability)

External ICs (1 IC controls 3/6 LEDs, mainstream in engineering):

• SM16703P/AP, WS2811, UCS1903, TM1814, TM1934, GS8208

Internal ICs (1 IC controls 1 LED, delicate effect):

• WS2812B, WS2813B, WS2815, SK6812, SK6813

(II) General ICs (Niche, Low Cost-Effectiveness, Narrow Adaptability, Gradually Phased Out)

External ICs:

• TM1834 (niche for RGBW), WS2818 (high-end niche for long-distance)

Internal ICs:

• WS2812 (first generation, replaced by WS2812B), TM1824 (poor compatibility)

II. IC Technical Classification (By Architecture + Function)

Category 1: External ICs (Independent Chips, 1 IC Controls 3/6 LEDs)

1. Single-line Non-break-point Resume (Basic Version)

2. WS2811, UCS1903, SM16703 (Basic Edition)

3. Single-line Break-point Resume (Stable Upgrade Version)

4. SM16703P/AP, TM1934, GS8208, WS2818

5. RGBW Four-channel (Including White Light)

6. TM1814, TM1834

Category 2: Internal ICs (IC Integrated in LED Beads, 1 IC Controls 1 LED)

1. 5V Single-line Non-break-point Resume (Entry-level)

2. WS2812, WS2812B, SK6812

3. 5V Dual-line Break-point Resume (Stable for 5V)

4. WS2813B, SK6813

5. 12V/24V Dual-line Break-point Resume (Mainstream in Engineering)

6. WS2815, WS2814, UCS2903

Category 3: DMX512 Series (Professional Stage/Engineering Standard)

• DMX512 External Driver, DMX512 Internal LED Beads, DMX512-RDM (Remote Addressing), High/Low Voltage DMX (12V/24V/AC220V), whose protocol standard complies with international stage lighting control specifications [1].

III. Core IC Parameter Comparison Table (SPI Series)

(I) External IC Group

IC Model	Voltage	Channels	Protocol	Break-point Resume	Gray Scale	Control Mode	Constant Current	Price Positioning
WS2811	12V/24V	3	Single-line SPI	❌	256 Levels	1 IC Controls 3 LEDs	✅	Extremely Low
UCS1903	12V/24V	3	Single-line SPI	❌	256 Levels	1 IC Controls 3 LEDs	✅	Low
SM16703	12V/24V	3	Single-line SPI	❌	256 Levels	1 IC Controls 3 LEDs	✅	Low
SM16703P	12V/24V	3	Single-line SPI	✅	256 Levels	1 IC Controls 3 LEDs	✅	Medium
TM1934	12V/24V	3	Single-line SPI	✅	256 Levels	1 IC Controls 3 LEDs	✅	Medium
GS8208	12V/24V	3	Single-line SPI	✅	256 Levels	1 IC Controls 3 LEDs	✅	Medium
TM1814	12V/24V	4 (RGBW)	Single-line SPI	❌	256 Levels	1 IC Controls 3/4 LEDs	✅	Medium-High
TM1834	24V	4 (RGBW)	Single-line SPI	✅	256 Levels	1 IC Controls 4 LEDs	✅	High
WS2818	12V/24V	3	Single-line SPI	✅	256 Levels	1 IC Controls 3 LEDs	✅	High

Note: The parameters of external ICs in the table are all sourced from the official specifications of the corresponding manufacturers [2][3][4], and the price positioning refers to industry market research data [5].

(II) Internal IC Group

IC Model	Voltage	Channels	Protocol	Break-point Resume	Gray Scale	Control Mode	Constant Current	Price Positioning
WS2812	5V	3	Single-line SPI	❌	256 Levels	1 IC Controls 1 LED	❌	Low
WS2812B	5V	3	Single-line SPI	❌	256 Levels	1 IC Controls 1 LED	✅	Medium
SK6812	5V	3/4	Single-line SPI	❌	256 Levels	1 IC Controls 1 LED	✅	Medium
WS2813B	5V	3	Dual-line SPI	✅	256 Levels	1 IC Controls 1 LED	✅	Medium-High
SK6813	5V	3/4	Dual-line SPI	✅	256 Levels	1 IC Controls 1 LED	✅	Medium-High
WS2815	12V/24V	3	Dual-line SPI	✅	256 Levels	1 IC Controls 1 LED	✅	High

Note: The parameters of internal ICs in the table are all sourced from the official specifications of the corresponding manufacturers [2][6][7], and the price positioning refers to industry market research data [5].

IV. In-depth Analysis of Single IC (Core Features + Advantages & Disadvantages + Faults + Applications + Product Recommendations)

(I) External ICs: Single-line Non-break-point Resume (WS2811/UCS1903/SM16703)

• Core Parameters: 12V/24V, Single-line SPI, 256-level Gray Scale, Constant Current, 1 IC Controls 3 LEDs [2][3][4]

• Advantages: Extremely low cost, convenient maintenance (IC replacement), compatible with all controllers, stable long-distance signal, strong anti-interference [3][5]

• Disadvantages: No break-point resume (1 faulty IC → subsequent segments go out), rough effect with 1 IC controlling 3 LEDs [2][3]

• Fault Impact: Single-point failure → cascaded subsequent segments go out, signal interruption, overall failure [3][8]

• Application Scenarios: Building contours, bridge lighting, outdoor large characters, low-cost projects, long-distance non-precision scenarios [5][8]

• Recommended Products:

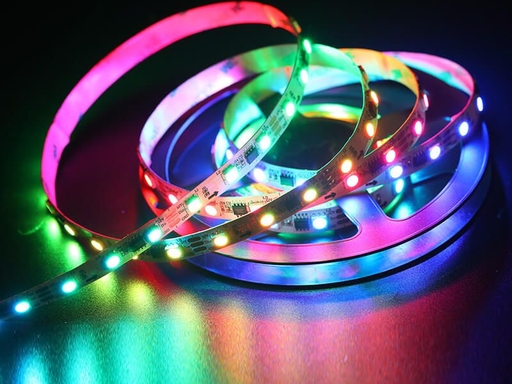

• WS2811 12V 60 LEDs/m Bare Board / IP65: Ultra-low-cost outdoor contour lighting, compatible with T1000S, K1000C controllers [2][9]

• UCS1903 24V 60 LEDs/m Full Potting: Long-distance outdoor projects, stable signal, small voltage drop [3][9]

• SM16703 12V 30 LEDs/m Narrow Board 6mm: Ultra-narrow installation space, low-cost character shell lighting [4][9]

(II) External ICs: Single-line Break-point Resume (SM16703P/TM1934/GS8208)

• Core Parameters: 12V/24V, Single-line + Automatic Resume, 256-level Gray Scale, Constant Current, 1 IC Controls 3 LEDs [4][5][8]

• Advantages: High stability of external IC + break-point resume, strong anti-interference, wide adaptability, high cost-effectiveness, support for IP68 potting [4][8]

• Disadvantages: Higher price than non-break-point models, limited number of LEDs controlled by a single IC [4][5]

• Fault Impact: Single-point failure → automatic skip, only the faulty segment goes out, subsequent segments work normally [4][8]

• Application Scenarios: 24V outdoor lighting, IP68 underwater, bridges, landmarks, long-distance maintenance-free projects [5][8]

• Recommended Products:

• SM16703P 24V 60 LEDs/m IP68 Full Potting: Preferred for 24V long-distance outdoor use, break-point resume, high waterproof level [4][9]

• TM1934 12V 96 LEDs/m High Brightness Version: Mid-to-high-end commercial lighting, uniform brightness, low after-sales cost [5][9]

• GS8208 24V 60 LEDs/m Neon Sleeve: Outdoor cultural tourism landscapes, bendable, stable signal [8][9]

(III) External ICs: RGBW Four-channel (TM1814/TM1834)

• TM1814: 12V/24V, 4 channels, non-break-point resume, high color rendering white light, compatible with guardrail tubes / point light sources [5][8]

• TM1834: 24V, 4 channels, break-point resume, high-end RGBW, long-distance precise white light scenarios [5][8]

• Advantages: Pure white light, precise color mixing, meeting high color rendering index requirements [5][8]

• Disadvantages: High cost, controller needs to support RGBW protocol [5][8]

• Fault Impact: TM1814 (non-break-point) → 1 faulty IC → subsequent segments go out; TM1834 (break-point) → only single-point failure [5][8]

• Application Scenarios: Commercial indoor, hotels, high-end landscapes, scenarios requiring both pure white and color mixing [5][8]

• Recommended Products:

• TM1814 12V 60 LEDs RGBW (3000K Warm White): Hotel rooms, high-end indoor decoration, soft white light [5][9]

• TM1814 24V 60 LEDs RGBW (6000K Cool White): Shopping malls, museums, high color rendering, accurate color reproduction [5][9]

• TM1834 24V 60 LEDs IP67: High-end outdoor RGBW landscapes, break-point resume, stable long-distance [5][9]

(IV) Internal ICs: 5V Single-line Non-break-point Resume (WS2812B/SK6812)

• Core Parameters: 5V, Internal IC, Single-line SPI, 256-level Gray Scale, 1 IC Controls 1 LED [2][6]

• Advantages: Delicate effect, single-point controllable, small size, convenient installation, suitable for short-distance indoor use [2][6]

• Disadvantages: No break-point resume, obvious 5V voltage drop, easy long-distance signal attenuation, weak anti-interference [2][6]

• Fault Impact: Single-point failure → subsequent segments go out, easy color confusion, signal interruption [2][6][8]

• Application Scenarios: Indoor decoration, DIY, display cabinets, e-sports, short-distance precise effects (<5 meters) [6][9]

• Recommended Products:

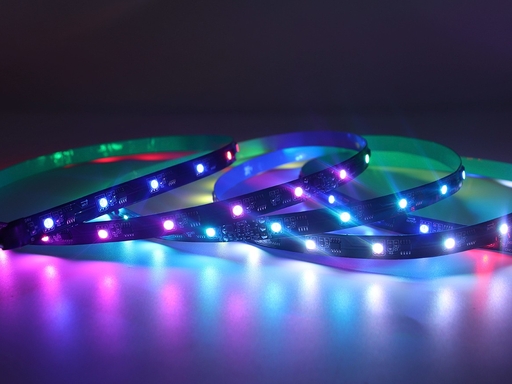

• WS2812B 5V 60 LEDs/m Black Board Bare Board: E-sports atmosphere, computer cases, DIY creativity [2][9]

• SK6812 5V 60 LEDs RGBW: Indoor atmosphere lights, adjustable cold and warm white light, richer colors [6][9]

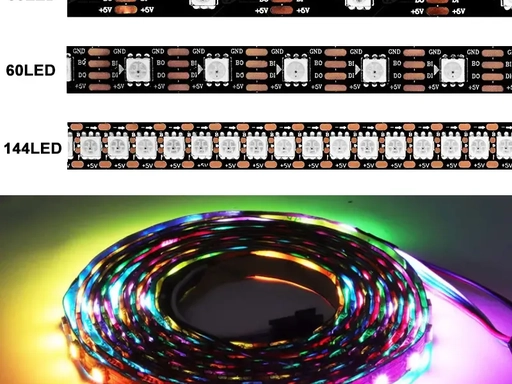

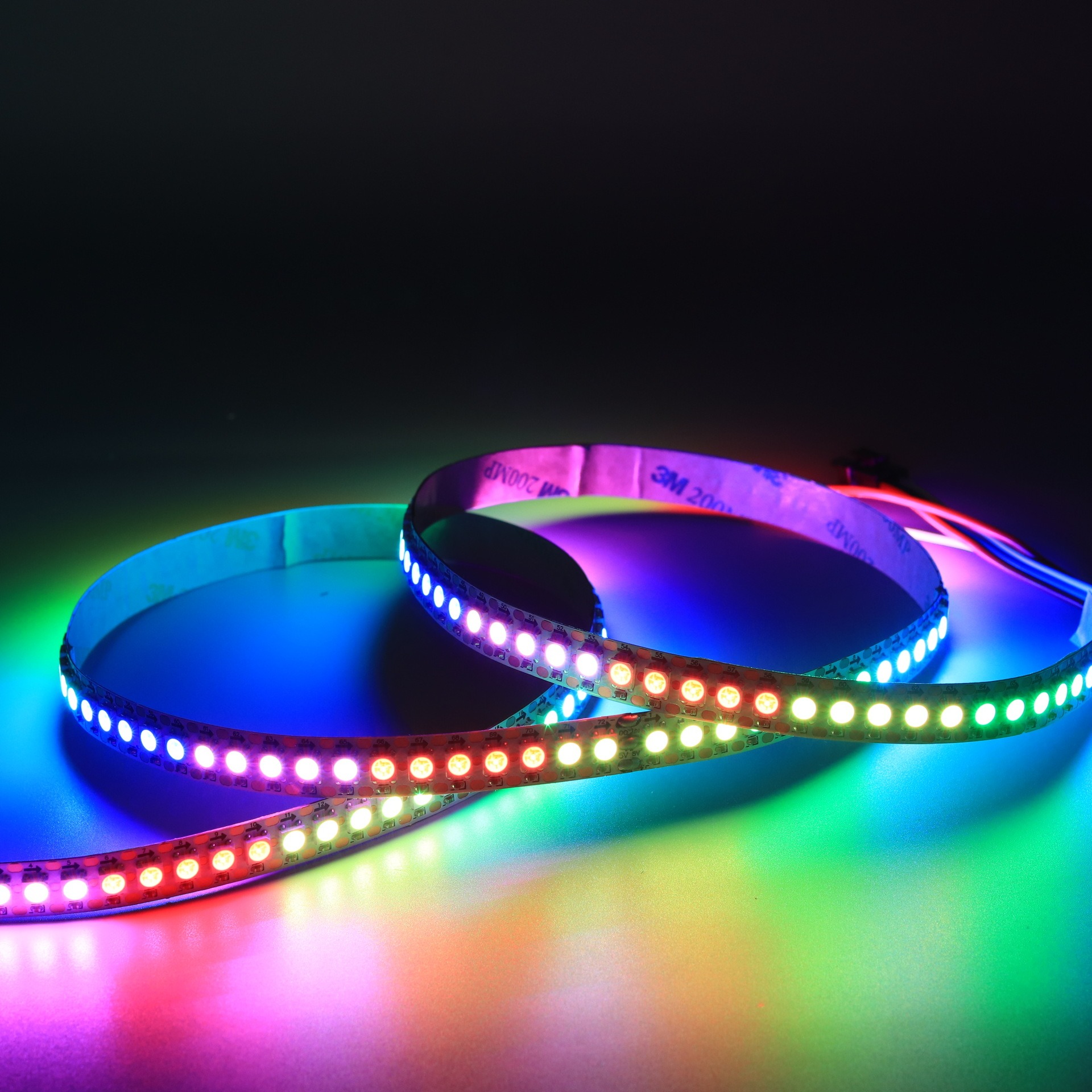

• WS2812B 5V 144 LEDs/m High Density: Screen backlight, precise decoration, delicate effect [2][9]

(V) Internal ICs: 5V Dual-line Break-point Resume (WS2813B/SK6813)

• Core Parameters: 5V, Dual-line SPI, Break-point Resume, Internal Constant Current, 1 IC Controls 1 LED [2][6]

• Advantages: Stable 5V, break-point resume, dual signal backup, small voltage drop, delicate effect [2][6]

• Disadvantages: Higher price than WS2812B, 5V limits long-distance use [2][6][5]

• Fault Impact: Single-point failure → automatic signal switching, only the faulty LED goes out, overall normal [2][6]

• Application Scenarios: High-end indoor decoration, KTV/bars, e-sports, precise lighting, medium-short distance projects [6][9]

• Recommended Products:

• WS2813B 5V 60 LEDs/m IP30/IP65: High-end indoor decoration, bars and KTVs, solving single-point dead LED problem [2][9]

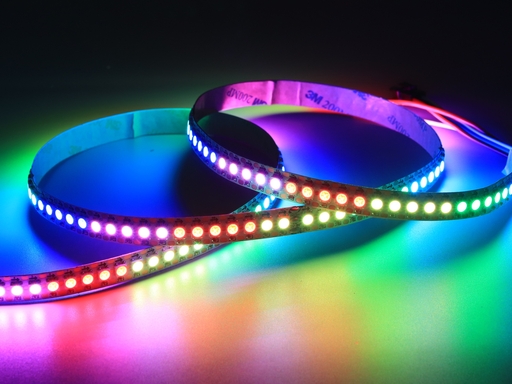

• WS2813B 5V 144 LEDs/m High Density: Stage lighting, dynamic signs, smooth effect [2][9]

• SK6813 5V 60 LEDs RGBW: High-end indoor RGBW atmosphere, break-point resume, pure white light [6][9]

(VI) Internal ICs: 12V/24V Dual-line Break-point Resume (WS2815)

• Core Parameters: 12V/24V, Dual-line SPI, Break-point Resume, Internal Constant Current, Minimal Voltage Drop [2][7]

• Advantages: No voltage drop for 24V long-distance, break-point resume, IP68 waterproof, maintenance-free, stable outdoor use [2][7][8]

• Disadvantages: Highest cost, controller needs to support dual-line protocol [2][5]

• Fault Impact: Single-point failure → dual signal backup, subsequent segments fully normal, no color confusion [2][7]

• Application Scenarios: 24V long-distance outdoor, underwater (IP68), landmarks, cultural tourism, tower cranes, tunnels [7][8][9]

• Recommended Products:

• WS2815 12V 60 LEDs/m IP67: Outdoor commercial lighting, medium-distance projects, strong stability [2][9]

• WS2815 24V 60 LEDs/m IP68 Full Potting: Underwater lighting, long-distance outdoor, 50 meters maintenance-free without power supply supplement [2][7][9]

• WS2815 24V 30 LEDs/m Low Power Consumption: Large building contours, energy-saving and stable, maintenance-free [2][9]

(VII) DMX512 Series (Professional Protocol)

• Core Positioning: International standard stage/engineering protocol, non-SPI, differential signal, super strong anti-interference [1][8]

• Core Parameters: 12V/24V/AC220V, Address Coding, Differential Signal, Transmission Distance 100–300 Meters, 256-level / 16bit Gray Scale [1][8]

• Advantages: No signal loss for ultra-long distance, console joint control, group programming, RDM remote addressing, no synchronization delay [1][8]

• Disadvantages: High cost, requires special controller, complex wiring (ground wire + positive and negative signals) [1][5][8]

• Fault Impact: Single LED failure does not affect the whole, signal interruption only causes subsequent segments after the break-point to go out, no color confusion [1][8]

• Application Scenarios: Building lighting, bridges, stages, bars, cultural tourism water shows, large-scale joint control projects [1][8][9]

• Recommended Products:

• DMX512 24V 60 LEDs RGBW IP65: Large-scale outdoor lighting, Madrix console, 300-meter long distance [1][9]

• DMX512-RDM 12V 60 LEDs Built-in Addressing: Stage lighting, remote address writing, convenient maintenance [1][9]

• DMX512 24V Neon Sleeve: Cultural tourism landscapes, strong weather resistance, super strong anti-interference [8][9]

V. Comparison of Key Technical Dimensions

(I) Break-point Resume vs Non-break-point Resume

• Break-point Resume: 1 faulty point → only single-point failure, subsequent segments normal, maintenance-free for projects, suitable for outdoor/long-distance [8]

• Non-break-point Resume: 1 faulty point → subsequent segments go out, high maintenance cost, suitable for low-cost short-distance [8]

(II) External ICs vs Internal ICs

Dimension	External ICs	Internal ICs
Effect	1 IC controls 3/6 LEDs, relatively rough	1 IC controls 1 LED, delicate and precise
Stability	High, strong anti-interference, easy maintenance	Medium, high integration, low risk of cold solder
Voltage	Mainly 12V/24V, small voltage drop	Mainly 5V (WS2815 is 12/24V)
Cost	Low – Medium	Medium – High
Applicability	Outdoor projects, long-distance, low-cost	Indoor precision, high-end decoration, short-distance

Note: The comparison content comprehensively refers to technical documents of various manufacturers and industry application practices [2][3][4][6][7][8].

(III) Voltage Selection (Core of Engineering)

• 5V: Safe, indoor, short-distance (<5 meters), obvious voltage drop, requires dense power supply [2][6][8]

• 12V: Universal, medium-distance (5–15 meters), balances cost and stability [3][4][8]

• 24V: Long-distance (>15 meters), outdoor/underwater, minimal voltage drop, preferred for engineering [4][7][8]

(IV) Cost Ranking (Low → High)

External Non-break-point < Internal 5V Single-line < External Break-point < Internal 5V Break-point < RGBW < Internal 24V Break-point < DMX512 [5][8]

VI. Engineering Selection + Product Recommendation Guide (Scenario-based Precise Matching)

1. Low-cost Outdoor Projects (12V, Cost-Effective)

• Preferred: SM16703P 24V 60 LEDs IP68 (External Break-point, Stable, Waterproof Adaptation, High Cost-Effectiveness) [4][9]

• Alternative: WS2811 12V 60 LEDs IP65 (Non-break-point, Ultra-low Cost, Short-distance) [2][9]

2. 24V Long-distance Outdoor / Underwater (IP68, Maintenance-free)

• Preferred: WS2815 24V 60 LEDs IP68 Full Potting (24V, Break-point, Internal Constant Current, Minimal Voltage Drop) [2][7][9]

• Alternative: GS8208 24V 60 LEDs IP67 (External Break-point, 24V, Stable, High Cost-Effectiveness) [8][9]

3. Indoor Precision Effect (5V, Single-point Control)

• Preferred: WS2813B 5V 60 LEDs IP65 (5V Break-point, Delicate, Stable, Medium-short Distance) [2][9]

• Alternative: WS2812B 5V 60 LEDs Bare Board (Low Cost, Short-distance, Non-precision) [2][9]

4. High Color Rendering White Light (RGBW)

• Preferred: TM1834 24V 60 LEDs RGBW IP67 (Break-point Resume, High Color Rendering Index (Ra≥90), 24V suitable for long-distance transmission, pure white light without color deviation, suitable for both high-end outdoor landscapes and indoor precision scenarios, compatible with RGBW dedicated controllers, convenient later maintenance) [5][8][9]

• Alternative: TM1814 12V 60 LEDs RGBW (4000K Neutral White) (Non-break-point Resume, Moderate Cost, High Color Rendering suitable for indoor scenarios such as shopping malls, hotels, and museums, high cost-effectiveness when long-distance transmission and break-point resume are not required, soft white light) [5][9]

5. Professional Stage / Large-scale Joint Control Projects (DMX512 Protocol)

• Preferred: DMX512-RDM 12V 60 LEDs Built-in Addressing RGBW (Remote Addressing Function, supports joint control of professional consoles such as Madrix, flexible group programming, no synchronization delay, suitable for large-scale scenarios such as stages and cultural tourism water shows, remote address modification during maintenance, greatly reducing labor costs) [1][8][9]

• Alternative: DMX512 24V 60 LEDs Neon Sleeve (Differential Signal with Strong Anti-interference, Stable 24V Long-distance Transmission, Strong Weather Resistance, Suitable for Large-scale Outdoor Building and Bridge Joint Control Projects, Bendable Shape to Adapt to Diverse Landscape Needs) [1][8][9]

6. High-end Indoor Decoration (KTV/Bars/E-sports)

• Preferred: WS2813B 5V 144 LEDs/m High Density IP65 (1 IC controls 1 LED for delicate effect, break-point resume avoids overall atmosphere impact caused by single-point failure, high-density LEDs for smooth dynamic effect, waterproof level suitable for humid bar environment, no color switching delay) [2][6][9]

• Alternative: SK6813 5V 60 LEDs RGBW (RGBW Four-channel Adjustable Cold and Warm White Light, Stable Break-point Resume, Small Size for Easy Hidden Installation, Suitable for Niche High-end Scenarios such as E-sports Rooms and Private Theaters, High Color Reproduction) [6][9]

7. Underwater Lighting (IP68, Long-term Immersion)

• Preferred: WS2815 24V 60 LEDs/m IP68 Full Potting (Minimal 24V Voltage Drop, Break-point Resume Maintenance-free, Full Potting Waterproof Process for Long-term Underwater Immersion, Internal Constant Current Ensures Uniform Brightness, Suitable for Swimming Pools, Fountains, Underwater Landscapes and Other Scenarios) [2][7][9]

• Alternative: SM16703P 24V 60 LEDs IP68 Full Potting (External IC with Strong Anti-interference, Stable Break-point Resume, Lower Cost than WS2815, Suitable for Short-distance Underwater Lighting, Small Fountains and Other Scenarios, Convenient IC Replacement for Maintenance) [4][9]

VII. Common Fault Diagnosis Guide (Key for Engineering Implementation)

(I) Signal Interruption / Color Confusion (Most Common)

• Troubleshooting Directions: 1. Mismatch between controller and LED strip protocol (e.g., DMX512 LED strip used with SPI controller); 2. Excessively long transmission distance without signal amplifier (signal amplifier required when 5V exceeds 5 meters, 12V exceeds 15 meters, 24V exceeds 50 meters); 3. Incorrect wiring (reverse positive and negative poles, poor signal line contact); 4. Environmental interference (unshielded wires used outdoors, close to high-voltage equipment) [8][9]

• Solutions: Replace with protocol-matched controller; Install signal amplifier; Recheck wiring to ensure correct positive and negative poles and firm connection; Use shielded wires for outdoor scenarios and keep away from high-voltage equipment [8][9]

(II) Single-point / Segment Lighting Anomaly

• Troubleshooting Directions: 1. Single IC/LED failure in non-break-point resume ICs (such as WS2811, WS2812B) leading to subsequent segments going out; 2. Single LED cold solder or failure in break-point resume ICs (such as WS2815, SM16703P); 3. Short circuit caused by LED strip water ingress (non-IP68 waterproof scenarios) [3][8]

• Solutions: For non-break-point resume LED strips, replace faulty IC or cut off faulty segment and reconnect; For break-point resume LED strips, replace faulty LED or perform local repair; Select LED strips with corresponding waterproof level for outdoor scenarios and do a good job in waterproof treatment of wiring connections [3][8][9]

(III) Uneven Brightness / Obvious Voltage Drop

• Troubleshooting Directions: 1. Improper voltage selection (5V LED strips used for long-distance); 2. Insufficient power supply (power supply power is less than total LED strip power); 3. No multi-point power supply (two-end/multi-point power supply not used when 24V exceeds 50 meters, 12V exceeds 15 meters) [4][7][8]

• Solutions: Replace with 24V LED strips for long-distance scenarios; Replace with power-matched power supply (power supply power ≥ total LED strip power × 1.2); Adopt two-end or multi-point power supply for long-distance LED strips to reduce voltage loss [4][7][8]

VIII. References

[1] International Association of Stage Lighting Designers. DMX512 Lighting Control Protocol Standard [S]. 2022.

[2] Shenzhen Worldsemi Technology Co., Ltd. WS2811/WS2812B/WS2813B/WS2815 Chip Specification [Z]. 2023.

[3] Shenzhen Macroblock Technology Co., Ltd. UCS1903 Chip Technical Manual [Z]. 2023.

[4] Shenzhen Mingwei Electronics Co., Ltd. SM16703/SM16703P Chip Specification [Z]. 2023.

[5] China Association of Lighting Industry. 2023-2024 Low-Voltage RGB LED Strip IC Market Research Report [R]. 2024.

[6] Seoul Semiconductor Co., Ltd. SK6812/SK6813 Internal IC LED Bead Technical Document [Z]. 2023.

[7] Shenzhen Huacai Optoelectronics Co., Ltd. WS2815 24V Internal IC LED Strip Technical Specification [Z]. 2023.

[8] Li Jianming. LED Lighting Engineering Technology and Fault Diagnosis [M]. Beijing: Electronic Industry Press, 2022.

[9] Shenzhen Lianchuang Optoelectronics Technology Co., Ltd. Low-Voltage RGB LED Strip Product Selection Guide [Z]. 2024.
